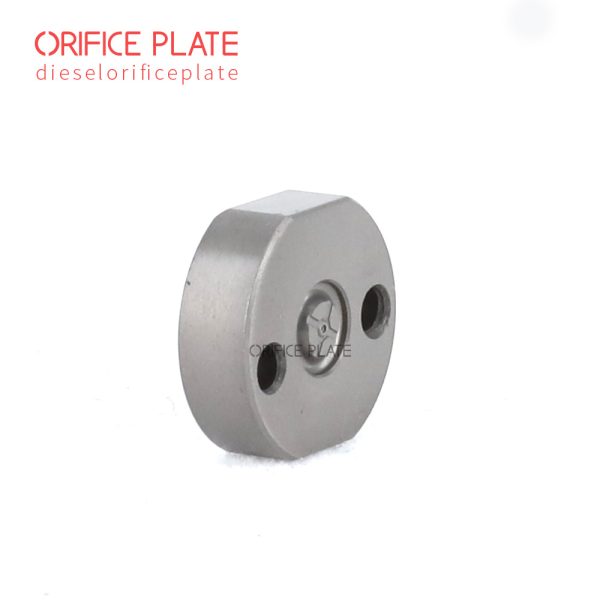

1. ME300290 Injector Orifice Plate 28# Basic Information

Title	Common Rail Orifice Plate 28# for ME300290 fuel Injector	Product Quality
SKU1	G1Z172950402800	China made new

2.ME300290 Injector Orifice Plate 28#Common Part Number

• ME300290 Injector Orifice Plate 28# Application to Car Model Information

Injector Part Number	Car Model	Car Model	OE Number
ME300290	6M60,6M60T,6M60-T1,FH,FK,FM	MITSUBISHI Fighter	/

3.ME300290 Injector Orifice Plate 28# Specifications and Dimensions

Injector Orifice Plate’s Size：2cm*2 cm *1 cm

Injector Orifice Plate’s Box Size: 7cm *7 cm *2 cm

Injector Orifice Plate’s Package Size：  8 cm * 8cm

Injector Orifice Plate’s Net Weight：0.015kg

Injector Orifice Plate’s Gross Weight：0.03kg

Injector Orifice Plate’s Quality：China Made Brand New

MOQ：4 Pieces

4.ME300290 Injector Orifice Plate 28# Customized Service

• ME300290 Injector Orifice Plate 28# Customized Service Range:

The customization amount of orifice plate 28# must meet the OEM manufacturers customized demands of orifice plate’s lettering, orifice plate’s thickness, orifice plate’s packing box, orifice plate’s anti-rust bag and label etc,.

• ME300290 Injector Orifice Plate 28# Customized Service Requirements：

▲ Custom lettering of injector orifice plate are not less than 100 pieces.

▲ Custom packing boxes of injector orifice plate are not less than 100 pieces.

▲ The purchase of injector orifice plates are not less than 100 pieces.

▲ When customized products involve the need of specific logo, the OEM manufacturer has to provide trademark authorization and the sample of logo image file.

Once the customized ME300290 injector orifice plate 28# is sold, it cannot be returned or exchanged if there is no quality problems.



5.  ME300290 Injector Orifice Plate 28# Thickness Measurement Tool’s Introduction

• Electronic Vernier Caliper
•  Technical Parameters

1. Made of stainless steel.
2. Resolution: 0.01mm/0.001.
3. Can set on zero at any location.

• Electronic Digital Display Micrometer
•  Technical Parameters

1. Range: 0-25mm,25-50mm,50-75mm,75-100mm
2. Resolution: 001mm
3. Power: Voltage 1.5V button battery
4. Working Temperature: 0∽+40℃
5. Storage Temperature: -20∽+70℃
6. Environment Humidity: ≤80%

6.  ME300290 Injector Orifice Plate 28# Thickness Measurement Methods

• Electronic Vernier Caliper

Notice: When using the electronic vernier caliper, be sure to return on zero port, otherwise there will be a large error in the measurement results!

• Electronic Digital Display Micrometer

7. ME300290 Injector Orifice Plate 28# Quality Control

（1） ME300290 Injector Orifice Plate 28# Testing

All ME300290 injector orifice plate 28# parts are subjected to A-hole flow test, Z-hole flow test, precision test, high temperature test, low temperature test, pressure test, leakage test, durability test, and various working condition tests.

（2） ME300290 Injector Orifice Plate 28#  Inspection

The factory inspection of ME300290 injector orifice plate 28# is undergone three inspections – full inspection, random inspection, and batch inspection. Different brands of test benches are used to test ME300290 injector orifice plate 28# for a total of no less than three times for factory inspection, and ME300290 injector orifice plate 28# installation testing environment are progressed in dust-free workshop.

8. ME300290 Injector Orifice Plate 28# Warranty Instructions

（1）. ME300290 Injector Orifice Plate 28# Warranty Conditions and Instructions

▲  It is necessary to provide the pictures, videos of ME300290 injector orifice plate 28# when the injector orifice plate is abnormal during use or the test report of ME300290 injector orifice plate 28# inspection equipment as evidence to feedback to the salesman.

▲  Abnormal conditions are properly explained such as：1.Black smoke, 2. Engine shake, 3. Difficulty starting the engine, 4. Engine noise, 5. Oil leakage etc.

▲  The above conditions may also be affected by incorrect installation of the fuel injector. If it is confirmed that it is product problem after being tested by our company,  the injector orifice plate is within the scope of warranty.











（2）. ME300290 Injector Orifice Plate 28# Warranty Coverage

▲  After customer receives the ME300290 injector orifice plate 28# within 15 days , customer can choose to replace it if there is a performance failure and the product has no appearance damage;

▲  If the ME300290 injector orifice plate 28# has performance problems during the warranty period (3 months), and it is confirmed to be product’s problems after being tested, you can contact our salesmen to replace the same model or a reworked product with the same performance for free;

If the injector orifice plate is confirmed to be fault-free, it can only be repaired and it will be returned as original way.

（3）. ME300290 Injector Orifice Plate 28# Out of Warranty Coverage

▲ The ME300290 injector orifice plate 28# is artificially damaged due to assembly errors during the process of assembling.

▲  The warranty period has expired.

▲  ME300290 injector orifice plate 28# failure caused by high temperature, high pressure, humidity, rain and snow, saline-alkali land, earthquake, and used in abnormal environment.

▲ ME300290 injector orifice plate 28# damage caused by man-made reasons (throwing, strong magnetic field magnetization, set fire).

▲  ME300290 injector orifice plate 28# failure or injector damage caused by non-injector orifice plate’s design, technology, manufacturing, quality and other issues.

▲ I ME300290 Injector orifice plate 28# failure due to system pressure exceeding system approved pressure.

▲ ME300290 injector orifice plate 28# failure caused by impurities (water, lead, aluminum powder, iron powder, sulfide) in the system fuel exceeding the standard requirements.

▲ ME300290 injector orifice plate 28# failure caused by not installing according to the tightening torque specified in the vehicle engine maintenance manual (the tightening torque is too large or too small).

▲ ME300290 injector orifice plate 28# failure caused by not following the installation angle specified in the vehicle engine maintenance manual.

▲ ME300290 injector orifice plate 28# failure caused by not following the cleaning requirements specified in the vehicle engine maintenance manual.

▲ ME300290 injector orifice plate 28# failure caused by failure to replace consumable parts as specified in the vehicle engine maintenance manual.

9. ME300290 Injector Orifice Plate 28# Installation Steps

For further information of orifice plate 28# installation steps, please check on “28# Orifice Plate for ME300290 Injector Technical Data” 2.4. ME300290 Injector Orifice Plate 28# Installation Steps

10.  ME300290 Injector Orifice Plate 28# Purchase Payment Methods

Payment methods：T/T, PayPal, Alipay, WeChat

11.  ME300290 Injector Orifice Plate 28#Shipping Ways

Destination in China areas: SF Express, Debon Express, the corresponding logistics company can be provided according to customer requirements in special cases.

Destinations out of China’s areas： DHL, UPS, FedEx, TNT air, ocean or other shipping methods required by customers.

12.  ME300290 Injector Orifice Plate 28#Packing

Domestic express packaging：   Wrapped with Transparent tape	International express packaging： Wrapped with yellow tape after wrapping with black protective film	Pallet Shipping：Use pallet that meet export requirements, and use white wrapping protective film to wrap and bind with cable ties
