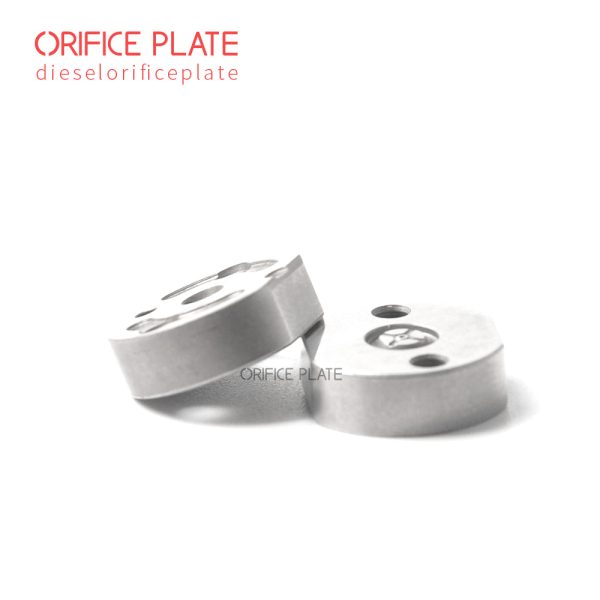

1. 6261-11-3100 Injector Orifice Plate 32# Basic Information

Title	Common Rail Orifice Plate 32# for 6261-11-3100 fuel Injector	Product Quality
SKU1	G1Z17000000032	China made new
SKU2	F1000000D002032	China made new
SKU3	G1N12950403200	China made new

2. 6261-11-3100 Injector Orifice Plate 32# Common Part Number

• 6261-11-3100 Injector Orifice Plate 32#Application to Car Model Information

Injector Part Number	Car Model	Car Model	OE Number	OE Number
6261-11-3100	KOMATSU 450-7,PC650-8	/	/	/

3. 6261-11-3100 Injector Orifice Plate 32# Specifications and Dimensions

Injector Orifice Plate’s Size：2cm*2 cm *1 cm

Injector Orifice Plate’s Box Size: 7cm *7 cm *2 cm

Injector Orifice Plate’s Package Size：  8 cm * 8cm

Injector Orifice Plate’s Net Weight：0.015kg

Injector Orifice Plate’s Gross Weight：0.03kg

Injector Orifice Plate’s Quality：China Made Brand New

MOQ：4 Pieces



4. 6261-11-3100 Injector Orifice Plate 32# Customized Service

• 6261-11-3100 Injector Orifice Plate 32#Customized Service Range:

The customization amount of orifice plate 32# must meet the OEM manufacturers customized demands of orifice plate’s lettering, orifice plate’s thickness, orifice plate’s packing box, orifice plate’s anti-rust bag and label etc,.

• 6261-11-3100 Injector Orifice Plate 32#Customized Service Requirements：

▲ Custom lettering of injector orifice plate are not less than 100 pieces.

▲ Custom packing boxes of injector orifice plate are not less than 100 pieces.

▲ The purchase of injector orifice plates are not less than 100 pieces.

▲ When customized products involve the need of specific logo, the OEM manufacturer has to provide trademark authorization and the sample of logo image file.

Once the customized 6261-11-3100 injector orifice plate 32# is sold, it cannot be returned or exchanged if there is no quality problems.



5. 6261-11-3100 Injector Orifice Plate 32# Thickness Measurement Tool’s Introduction

• Electronic Vernier Caliper
•  Technical Parameters

1. Made of stainless steel.
2. Resolution: 0.01mm/0.001.
3. Can set on zero at any location.

• Electronic Digital Display Micrometer
•  Technical Parameters

1. Range: 0-25mm,25-50mm,50-75mm,75-100mm
2. Resolution: 001mm
3. Power: Voltage 1.5V button battery
4. Working Temperature: 0∽+40℃
5. Storage Temperature: -20∽+70℃
6. Environment Humidity: ≤80%



6. 6261-11-3100 Injector Orifice Plate 32# Thickness Measurement Methods

• Electronic Vernier Caliper

Notice: When using the electronic vernier caliper, be sure to return on zero port, otherwise there will be a large error in the measurement results!

• Electronic Digital Display Micrometer



7. 6261-11-3100 Injector Orifice Plate 32# Quality Control

（1）6261-11-3100 Injector Orifice Plate 32# Testing

All 6261-11-3100 injector orifice plate 32# parts are subjected to A-hole flow test, Z-hole flow test, precision test, high temperature test, low temperature test, pressure test, leakage test, durability test, and various working condition tests.

（2）6261-11-3100 Injector Orifice Plate 32#  Inspection

The factory inspection of 6261-11-3100 injector orifice plate 32# is undergone three inspections – full inspection, random inspection, and batch inspection. Different brands of test benches are used to test 6261-11-3100 injector orifice plate 32# for a total of no less than three times for factory inspection, and 6261-11-3100 injector orifice plate 32# installation testing environment are progressed in dust-free workshop.



8. 6261-11-3100 Injector Orifice Plate 32# Warranty Instructions

（1）. 6261-11-3100 Injector Orifice Plate 32# Warranty Conditions and Instructions

▲  It is necessary to provide the pictures, videos of 6261-11-3100 injector orifice plate 32# when the injector orifice plate is abnormal during use or the test report of 6261-11-3100 injector orifice plate 32# inspection equipment as evidence to feedback to the salesman.

▲  Abnormal conditions are properly explained such as：1.Black smoke, 2. Engine shake, 3. Difficulty starting the engine, 4. Engine noise, 5. Oil leakage etc.

▲  The above conditions may also be affected by incorrect installation of the fuel injector. If it is confirmed that it is product problem after being tested by our company,  the injector orifice plate is within the scope of warranty.



（2）. 6261-11-3100 Injector Orifice Plate 32# Warranty Coverage

▲  After customer receives the 6261-11-3100 injector orifice plate 32# within 15 days , customer can choose to replace it if there is a performance failure and the product has no appearance damage;

▲  If the 6261-11-3100 injector orifice plate 32# has performance problems during the warranty period (3 months), and it is confirmed to be product’s problems after being tested, you can contact our salesmen to replace the same model or a reworked product with the same performance for free;

If the injector orifice plate is confirmed to be fault-free, it can only be repaired and it will be returned as original way.

（3）. 6261-11-3100 Injector Orifice Plate 32# Out of Warranty Coverage

▲ The 6261-11-3100 injector orifice plate 32# is artificially damaged due to assembly errors during the process of assembling.

▲  The warranty period has expired.

▲  6261-11-3100 injector orifice plate 32# failure caused by high temperature, high pressure, humidity, rain and snow, saline-alkali land, earthquake, and used in abnormal environment.

▲ 6261-11-3100 injector orifice plate 32# damage caused by man-made reasons (throwing, strong magnetic field magnetization, set fire).

▲  6261-11-3100 injector orifice plate 32# failure or injector damage caused by non-injector orifice plate’s design, technology, manufacturing, quality and other issues.

▲ I6261-11-3100 injector orifice plate 32# failure due to system pressure exceeding system approved pressure.

▲ 6261-11-3100 injector orifice plate 32# failure caused by impurities (water, lead, aluminum powder, iron powder, sulfide) in the system fuel exceeding the standard requirements.

▲ 6261-11-3100 injector orifice plate 32# failure caused by not installing according to the tightening torque specified in the vehicle engine maintenance manual (the tightening torque is too large or too small).

▲ 6261-11-3100 injector orifice plate 32# failure caused by not following the installation angle specified in the vehicle engine maintenance manual.

▲ 6261-11-3100 injector orifice plate 32# failure caused by not following the cleaning requirements specified in the vehicle engine maintenance manual.

▲ 6261-11-3100 injector orifice plate 32# failure caused by failure to replace consumable parts as specified in the vehicle engine maintenance manual.



9. 6261-11-3100 Injector Orifice Plate 32# Installation Steps

For further information of orifice plate 32# installation steps, please check on “32# Orifice Plate for 6261-11-3100 Injector Technical Data” 2.4. 6261-11-3100 Injector Orifice Plate 32# Installation Steps



10. 6261-11-3100 Injector Orifice Plate 32# Purchase Payment Methods

Payment methods：T/T, PayPal, Alipay, WeChat

11. 6261-11-3100 Injector Orifice Plate 32# Shipping Ways

Destination in China areas: SF Express, Debon Express, the corresponding logistics company can be provided according to customer requirements in special cases.

Destinations out of China’s areas： DHL, UPS, FedEx, TNT air, ocean or other shipping methods required by customers.

12. 6261-11-3100 Injector Orifice Plate 32# Packing

Domestic express packaging： Wrapped with Transparent tape	International express packaging： Wrapped with yellow tape after wrapping with black protective film	Pallet Shipping：Use pallet that meet export requirements, and use white wrapping protective film to wrap and bind with cable ties
